    We ensure the smooth delivery of our products to more than 50 countries and regions in Africa, Central Asia, and Southeast Asia.

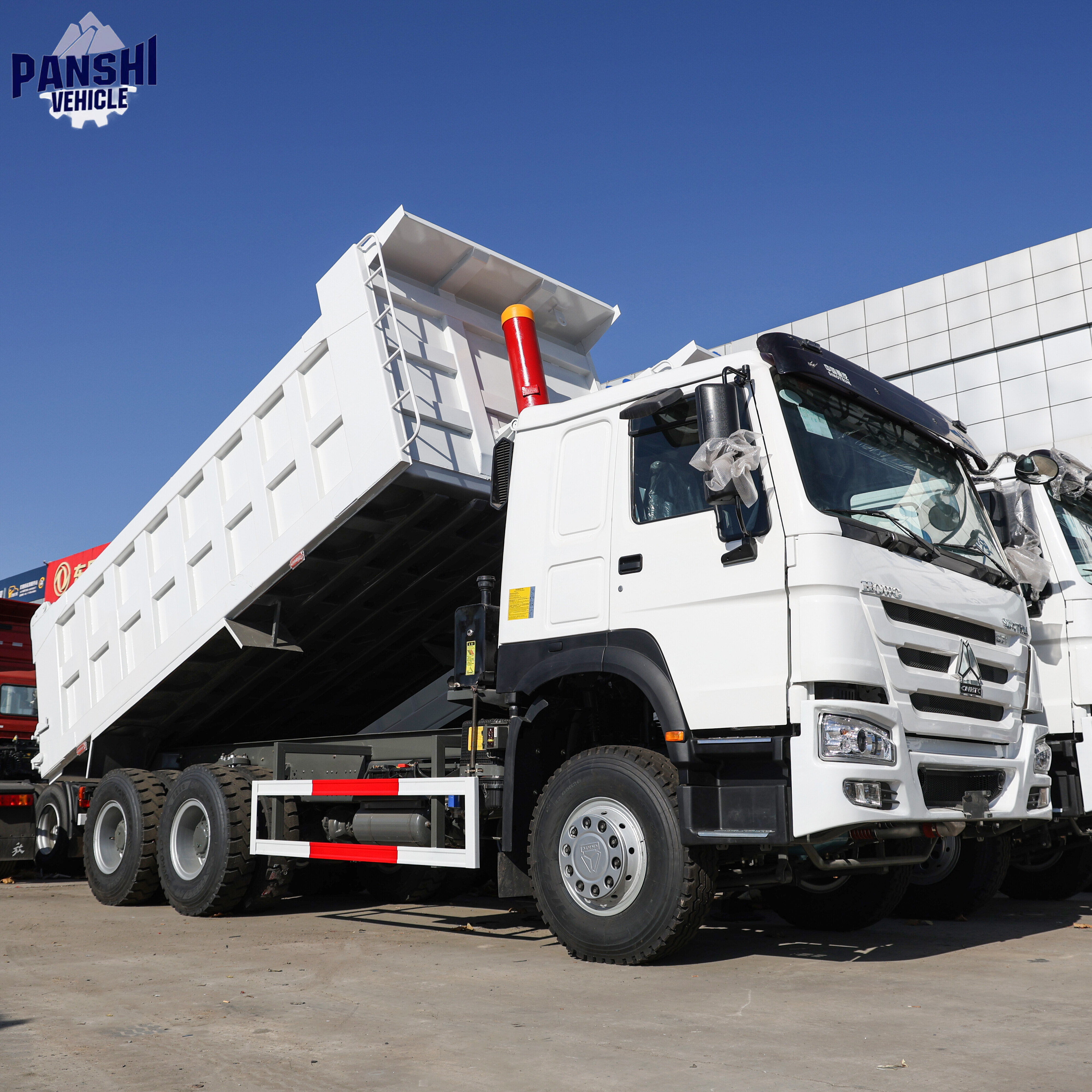

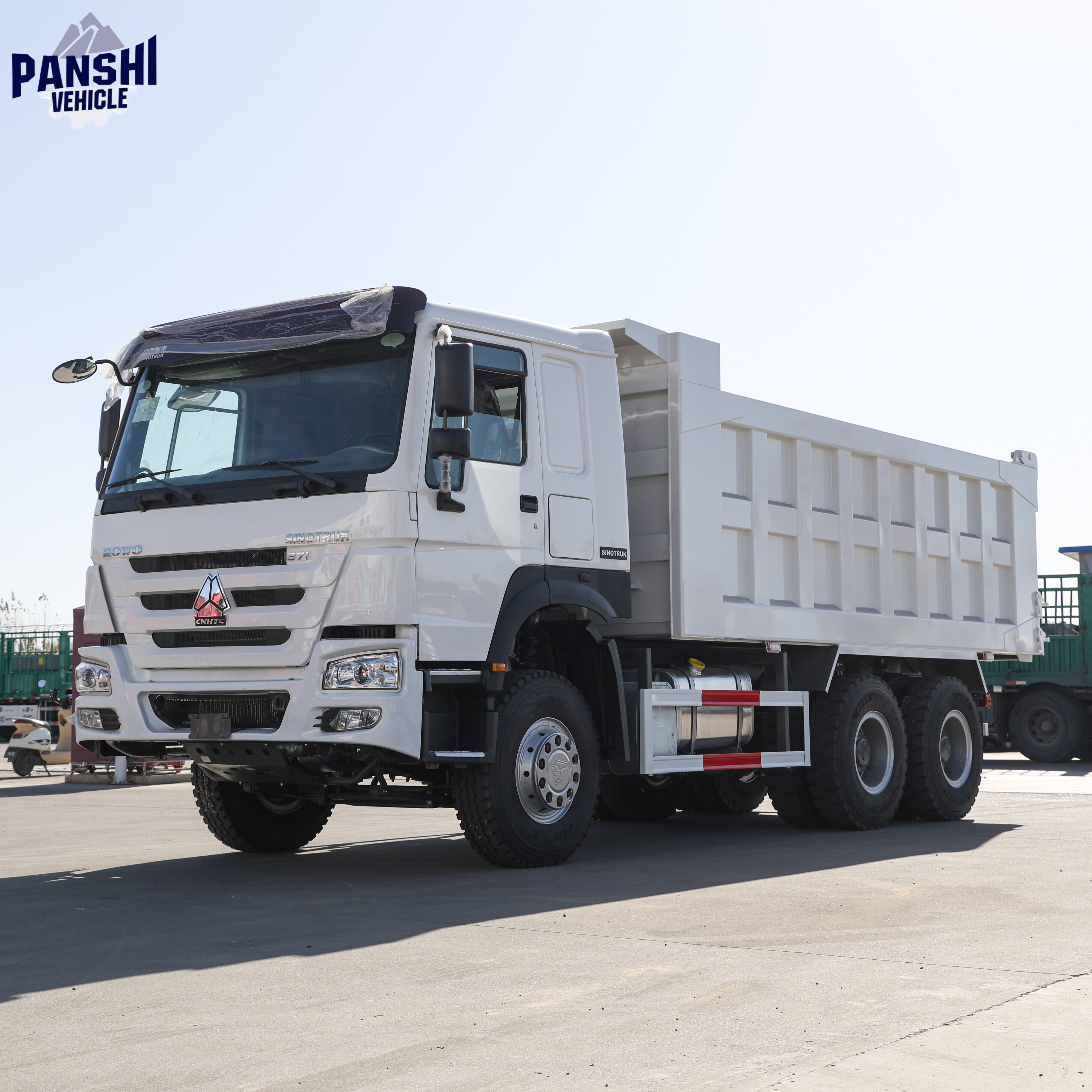

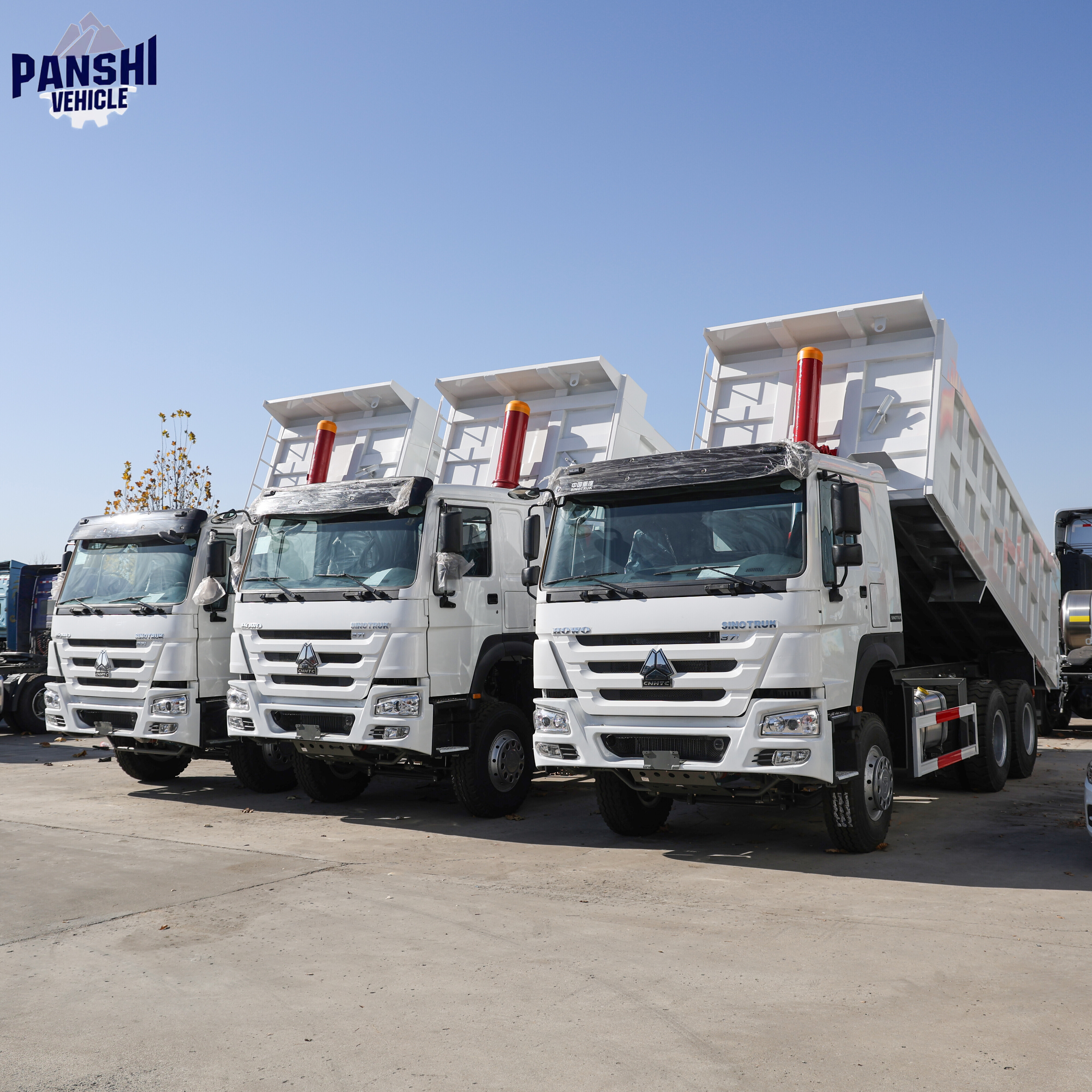

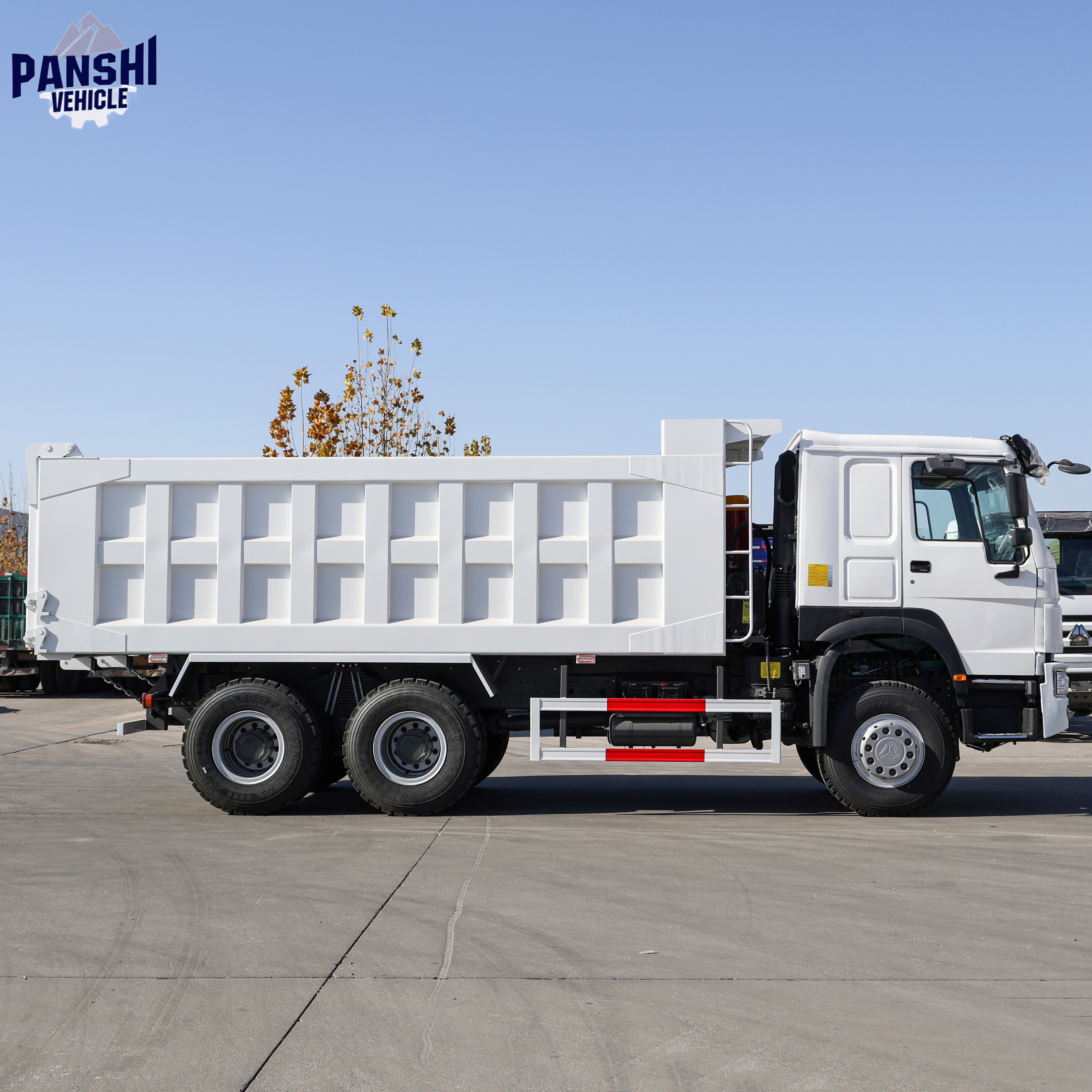

Sinotruk Howo 6x4/8x4 diesel trucks, 10-wheel and 12-wheel cargo box models, are for sale.
Model: HOWO
Cab:HW76,with one sleep,with A/C
Engine:WP12.400E201; 400hp; Euro II
Transmission: HW19710,10 forward and 2 reverse
Steering: Left hand driving
Axles: Front: 9500kg & Rear: 2*16000kg
Tire: 12.00R20 radial tyre with 1 Spare tire.
Carriage Internal Dimension:5600x2300x1500mm
Steel thickness of Carriage:Floor:10mm/Side:8mm
Hydraulic Lift of Carriage:Front Lift
Contact Us

Hot Products

Product Description


Truck BrandHOWO
Dimension (LxWxH) (unloaded)mm8645×2550×3450
BodyCarriage Internal Dimension:5600x2300x1500mmSteel thickness of Carriage:Floor:10mm/Side:8mmHydraulic Lift of Carriage:Front LiftSteel:Q345
Approaching angle/ Departure angel (°)19/23
Overhang (front/rear) (mm)1500/1870
Wheel base (mm)3825+1350
Max. Driving speed (km/h)75
Front axle loading capacity (kg)9500
Rear axle loading capacity(kg)2*16000
Curb weight (kg)12750
Gross vehicle weight30000
Cab ModelSINOTRUK HW76 Lengthen cab,single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.
Engine ModelWP12.400E201(EURO II),400hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Engine Rated Power(kw/rpm)294/2100
EngineMake WEICHAI, Euro II emission standard, Thermostat with 80ºC opening begin, Rigid fan
ClutchSINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission ModelSINOTRUK HW19710 transmission ,10 forward and 2 reverse
Service brakeDual circuit compressed air brake
Parking Brake(emergency brake)Spring energy, compressed
Steering systemSteering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
Front axleSINOTRUK VGD95 Front Axle,new 9.5-ton front axles of equipped with drum brakes.
Rear axleSINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Wheels &TireRims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.
Electrics Operating voltage24V,negative grounded
Starter24V,7.5 Kw
Alternator3-phase,28V,1500 W
Batteries2x12 V,165 Ah
Electrical systemhorn,headlamps,fog lights,brake lights,indicators and reverse light.
Oil Tank300L fuel tank
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice
